IDEAL INDUSTRIES INC. 92-650 RTQ XR RG-6 F Compression Connectors, Male F Connectors for Cable and Satellite Applications, 50 Connectors, Jar

IDEAL INDUSTRIES INC. 92-650 RTQ XR RG-6 F Compression Connectors, Male F Connectors for Cable and Satellite Applications, 50 Connectors, Jar

Regular price $57.80 USD
Regular price $76.99 USD Sale price $57.80 USD
Sale Sold out
Shipping calculated at checkout.

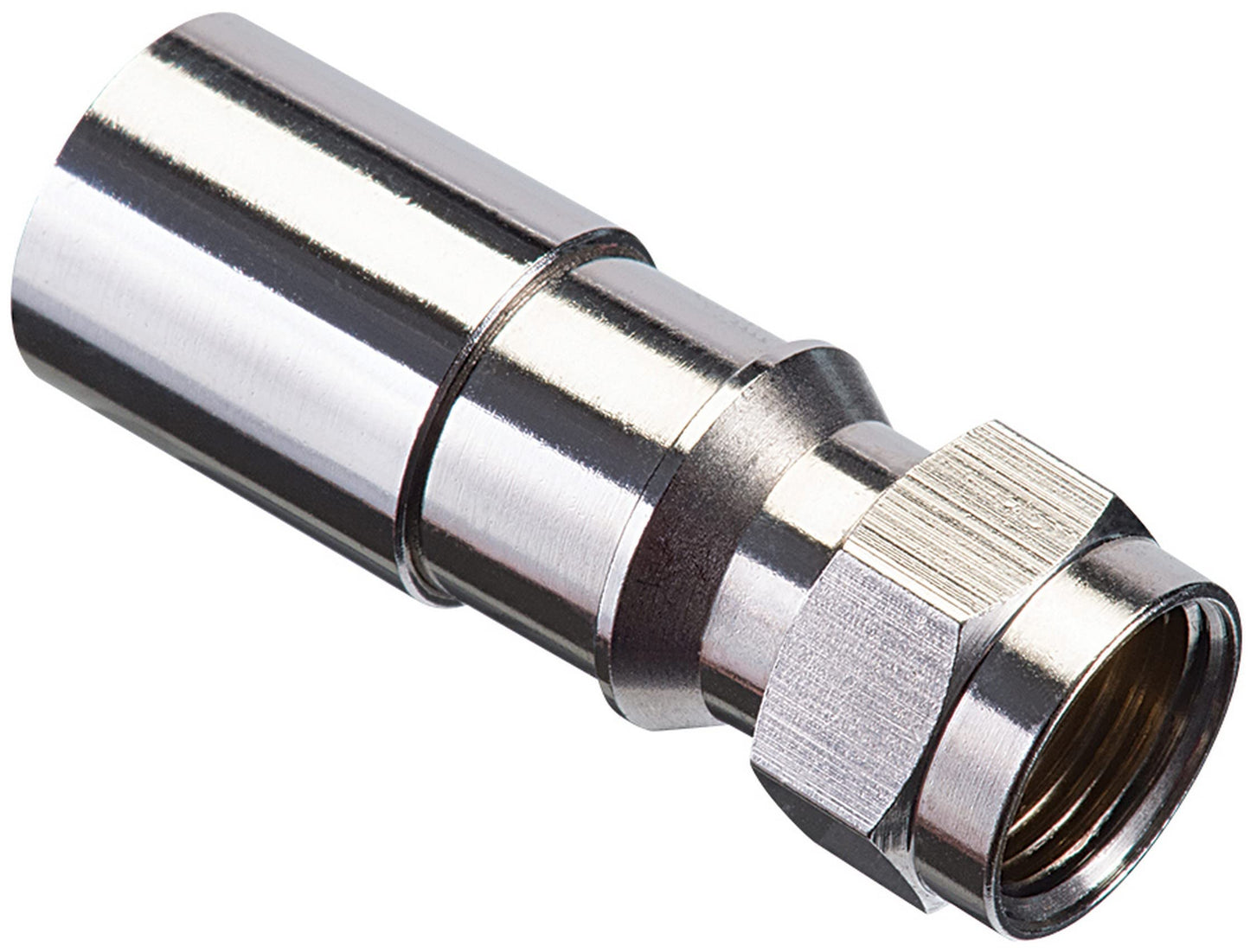

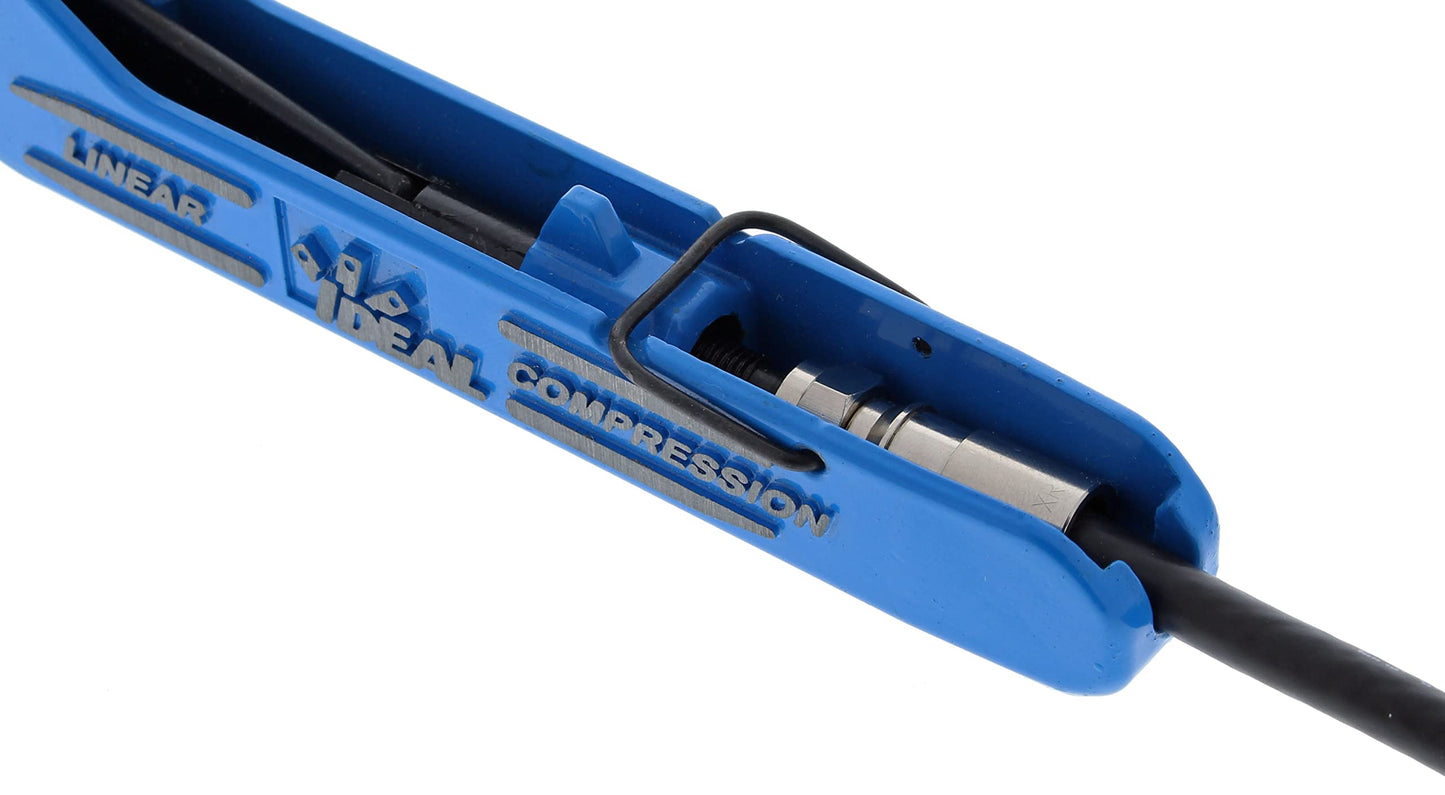

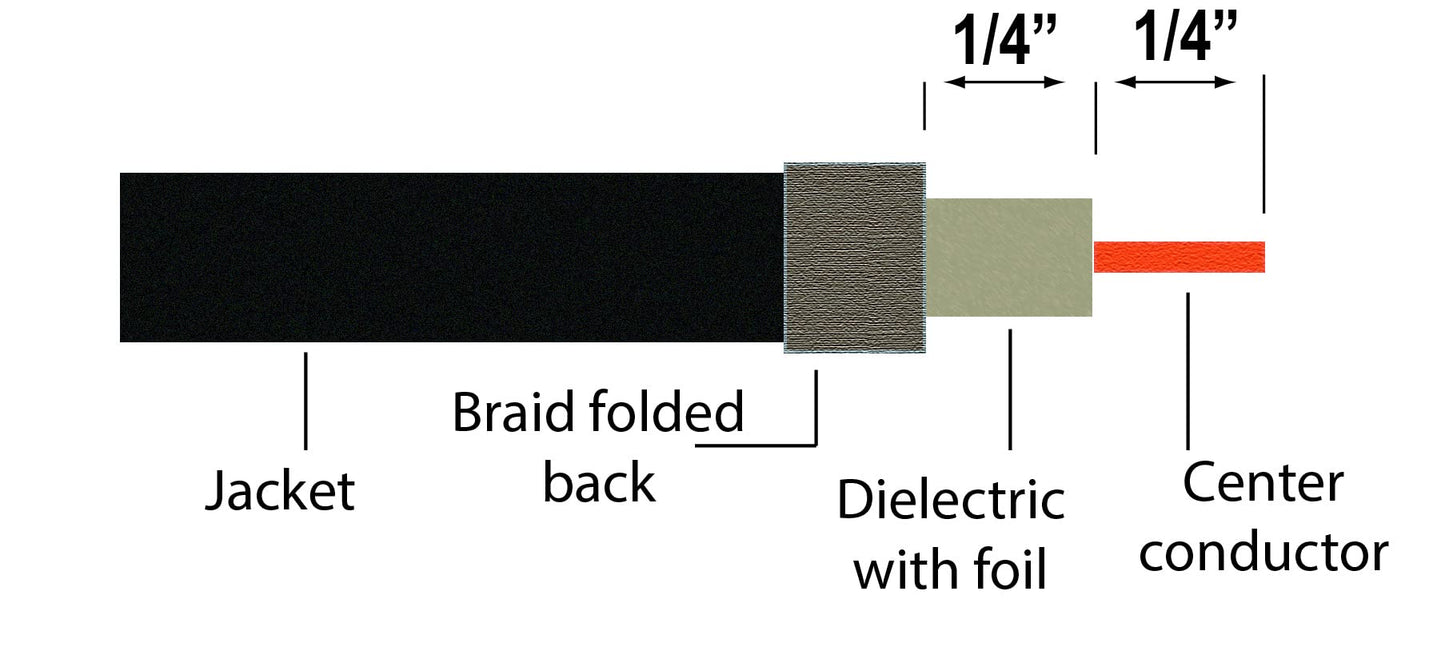

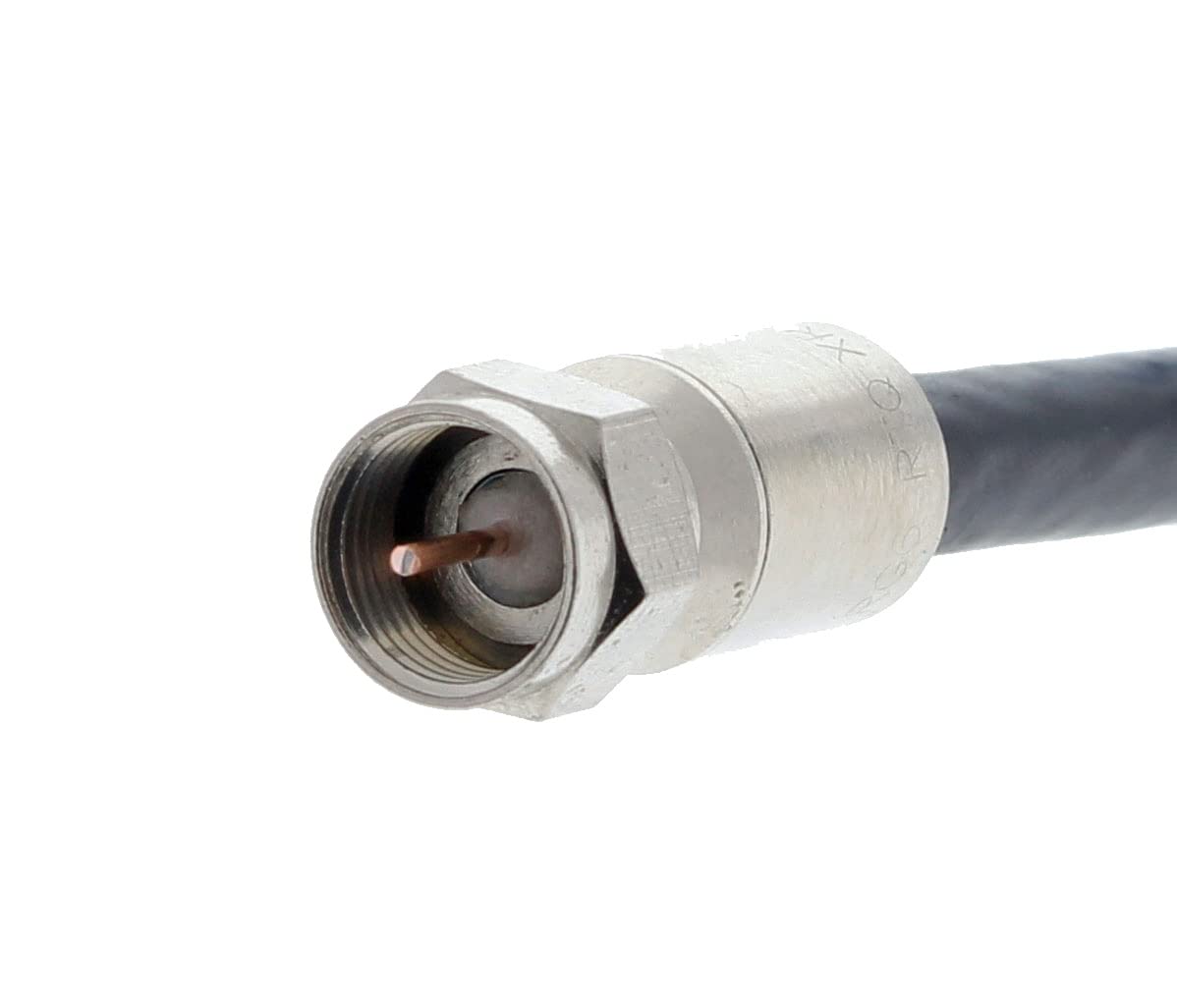

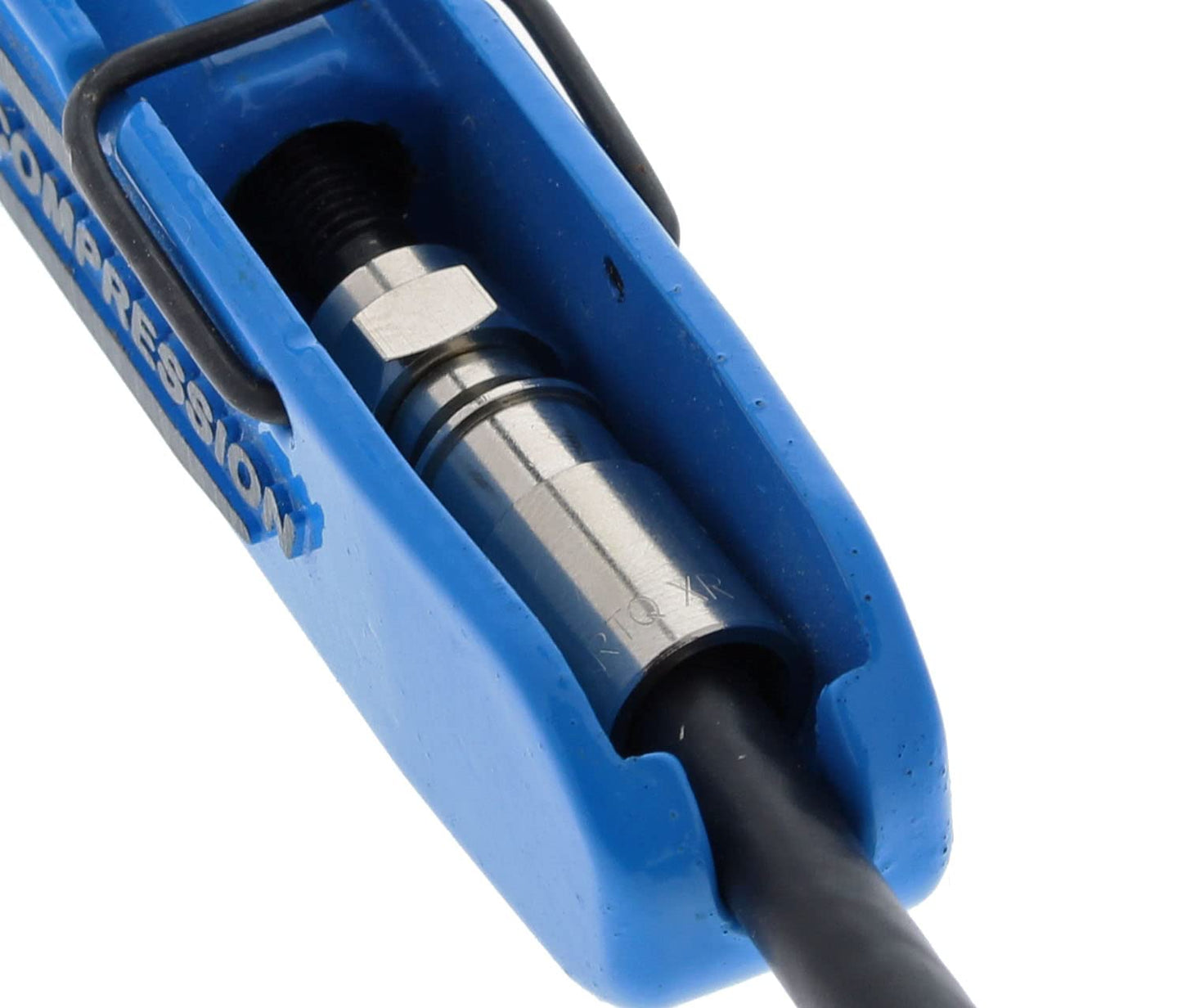

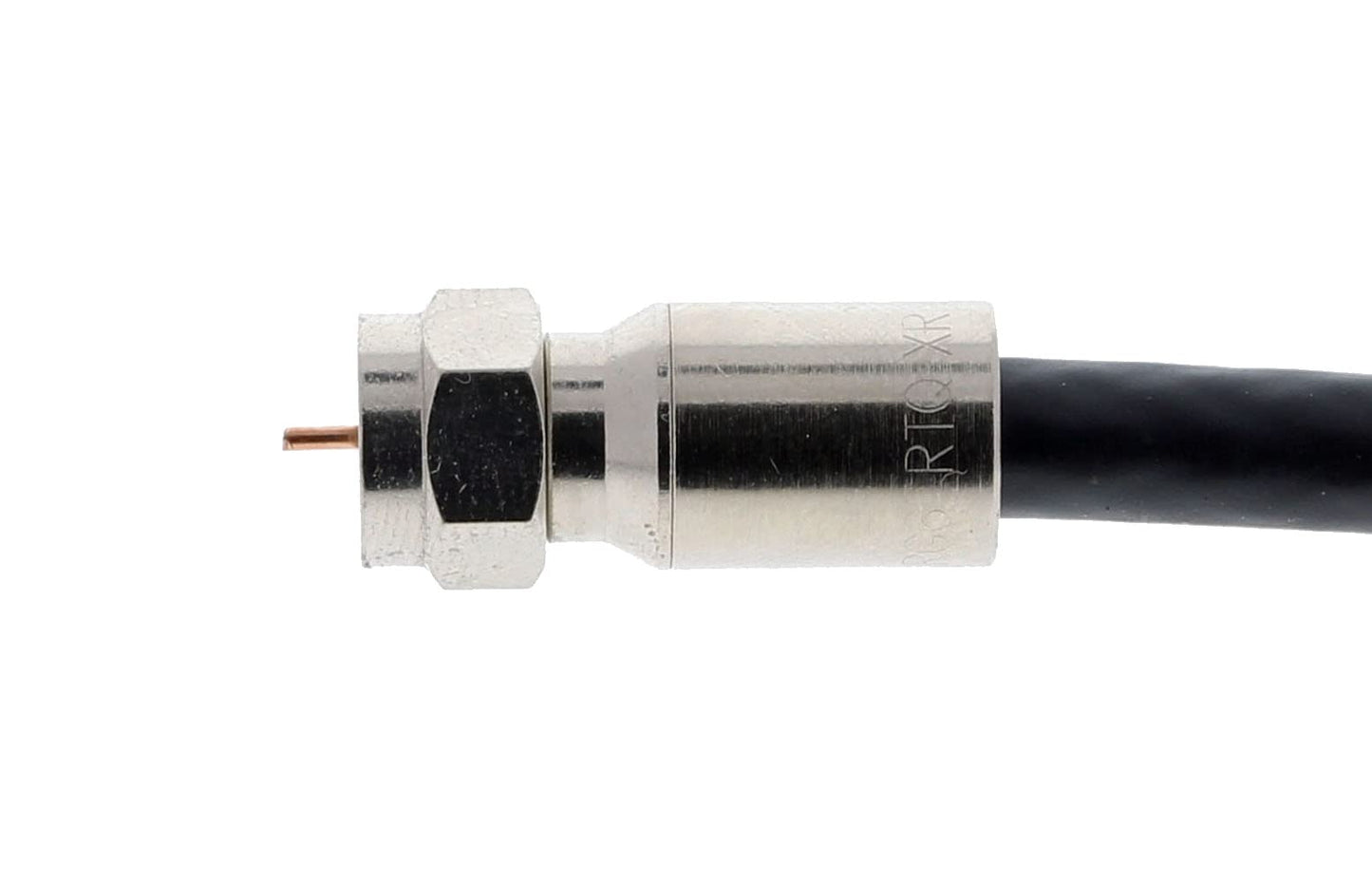

The IDEAL RTQ XR series of RG-6 F connectors offer a single connector solution to cover a wide range of coax types including plenum cables. A patented compression sleeve design allows Regular (dual), Tri and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors. For use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aides in cable retention. All RTQ XR connectors require an industry standard ¼” x ¼” cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal Pro or LinearX compression tool. To use the connector: 1) Prepare RG-6 coax with a ¼” x ¼” strip, fold back the braiding. For RG-6 Quad, remove the outer foil layer and fold back both layers of braiding. 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut. 3) Place connector in IDEAL compression tool with standard F compression length setting and terminate. 4) During termination, the body will compress (get shorter) and permanently secure the coax inside of the connector. 5) Attach connector to device.

FEATURES

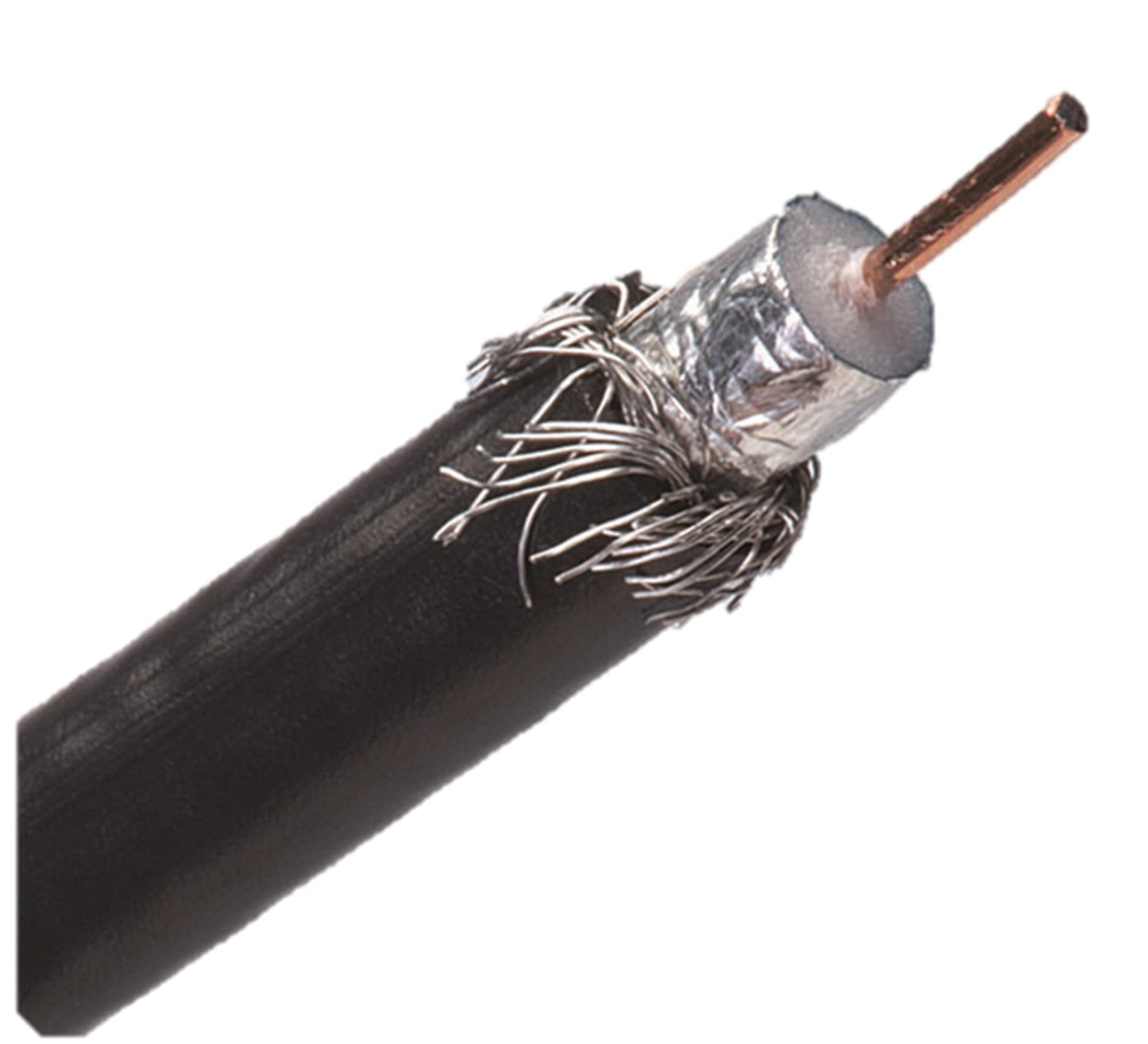

    • Cable specific - accepts RG-6/RG-6 Quad coax cables, dielectric diameter range 0.168 in. to 0.183 in., outer jacket diameter range 0.226 in. to 0.310 in., center conductor range: all
    • Nickel-plated brass construction offers corrosion resistance
    • Fits 60% regular, tri-shield and quad-shield cables
    • All RTQ XR and RTQ connectors require a standard 1/4 in. x 1/4 in. cable preparation
    • Weatherproof - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
