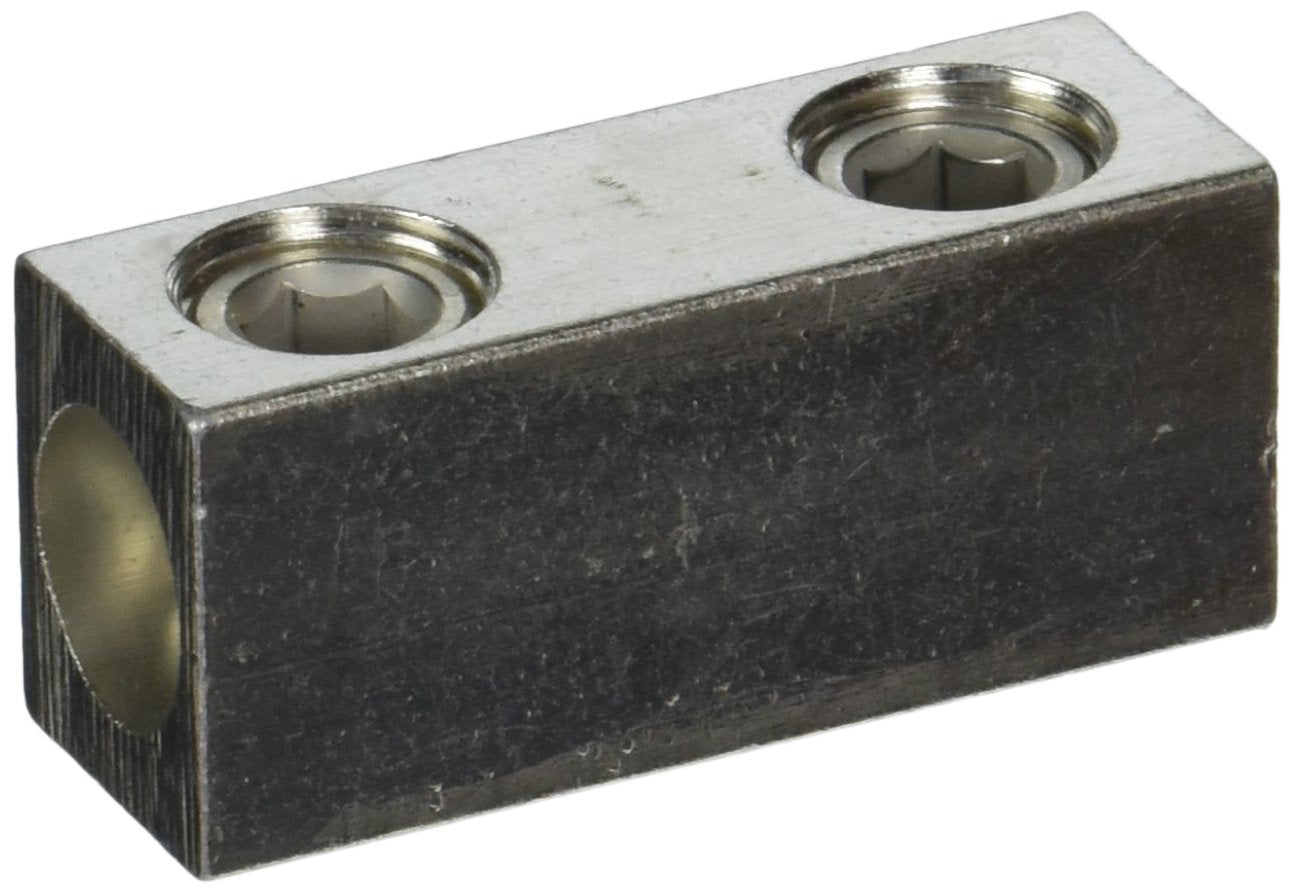

Alumunium Splicer Reducer 4/0-6 AWG (AL/CU) - 1 Count

Aluminum Splicer Reducer 4/0-6 AWG Aluminum Splicer Reducers are used for splicing two copper or aluminum wires of equal or different sizes. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. SPECIFICATIONS:QUANTITY: 1 CountRATED: 600 VoltsPORTS: 2SET SCREWS: 2WIRE RANGE (CU-AL): 4/0-6 AWGTORQUE VALUE (IN/LBS): 250WRENCH SIZE: 5/16LENGTH: 2.31 in.HEIGHT: 1.00 in.WIDTH: 0.812 in.BRAND EQUIVALENT: Burndy AMS-4/0Ilsco SPA40Panduit SR-0-XY MANUFACTURER: NSi IndustriesPART NUMBER: 4/0SRUPC: 662381002327 We have the best selection and prices on connectors.
